Application:

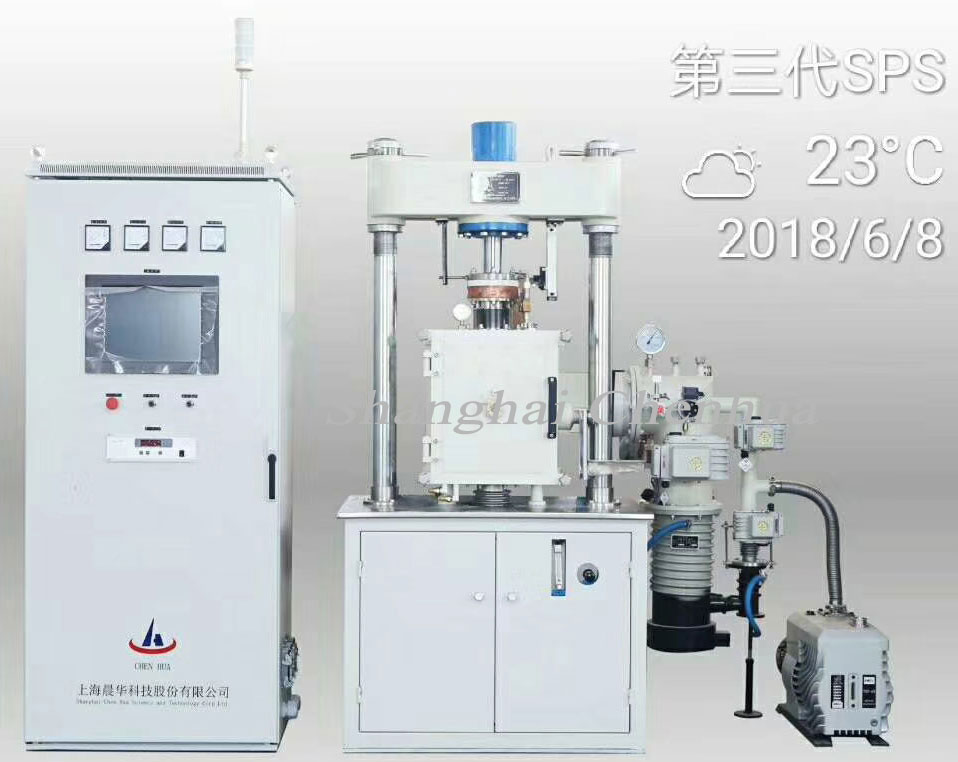

SPS fast pressure sintering system is one of the most advanced fast hot press sintering systems in the world,
characterized by the fast sintering speed and high density sintering. It is the most powerful tool used to sinter
the nanophase material, gradient functional material, mesoporous nanoscale thermoelectric material, rare earth
permanent magnetic material, alloy glass nonequilibrium material and biological material.
Main technical parameters：
| Model | Rated power | Output current | Input voltage | Max. temperature | Max. pressure | Sample size | Punch displacement | Final vacuum |
| SPS-10T-5-III | 50KW | 0-5000A | 0-10V | 2300℃ | 10T | ?50mm | 100mm | 10Pa |
| SPS-20T-10-III | 100KW | 0-10000A | 0-10V | 2300℃ | 20T | ?100mm | 100mm | 10-3Pa |
| SPS-20T-20-III | 200KW | 0-20000A | 0-10V | 2300℃ | 20T | ?200mm | 100mm | 10-3Pa |
